BWA B

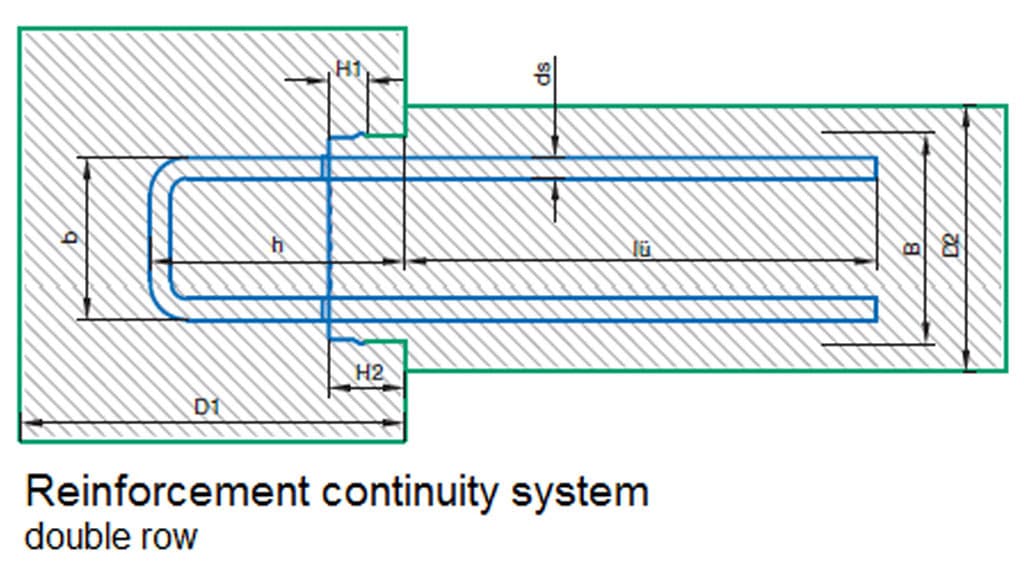

Sistem kontinuiteta armature - Dvoređan

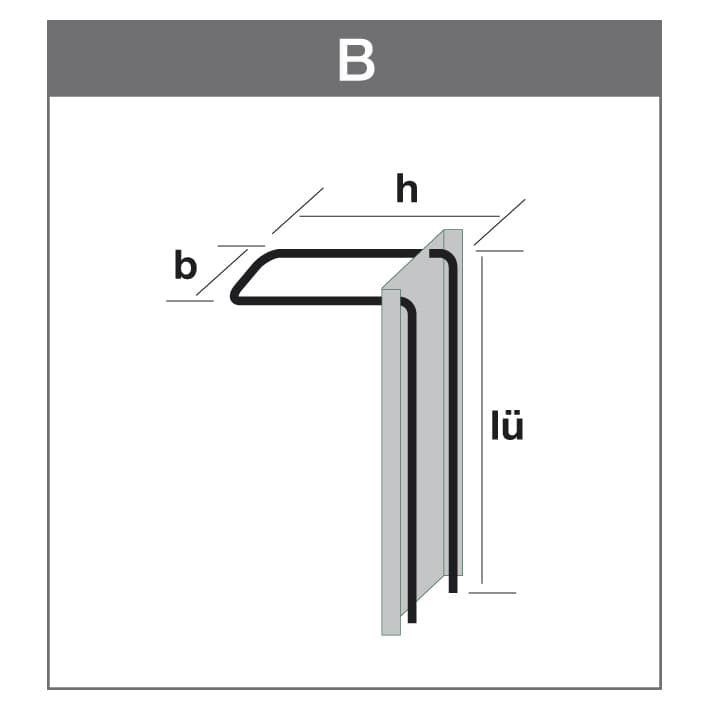

Standardni tip oblika uzengije = tip "B" / dužina elementa 125 cm / "B" = Uzengija (Bügel)

Korišćenje građevinskog armaturnog čelika, sposobnog za savijanje u poziciju, prema DIN 488.
Prečnik valjka za savijanje prema normi 6 ds.
Dužine sidrenja i prečnici savijanja prema DBV uputstvu "Rückbiegen".
Testirano prema DBV uputstvu "Rückbiegen".
Tipski odobreno prema Eurocode 2.
Mogući poklopci od lima ili plastike.
Opšti kvalitet čelika B500 B (drugi kvaliteti čelika na zahtev).

PozoviEmail

Specifikacija

ŠIFRA ARTIKLA	OZNAKA	ČELIK "DS" Ø MM	RAZMAK UZENGIJA "S" MM	VISINA UZENGIJA "H" MM	DIMENZIJE UZENGIJA "V" MM	„LU" MM	ŠIRINA "B" MM	VISINA "H1" MM	VISINA "H2" SA POKLOPCEM MM	PALETA M
1200815B	BWAB 120/08-15	8	150	170	88	320	122	12	30	150
1200820B	BWAB 120/08-20	8	200	170	88	320	122	12	30	150
1200825B	BWAB 120/08-25	8	250	170	88	320	122	12	30	150
1201015B	BWAB 120/10-15	10	150	170	90	390	122	12	30	150
1201020B	BWAB 120/10-20	10	200	170	90	390	122	12	30	150
1201025B	BWAB 120/10-25	10	250	170	90	390	122	12	30	150
1201215B	BWAB 120/12-15	12	150	170	92	390	122	12	36	150
1201220B	BWAB 120/12-20	12	200	170	92	440	122	12	36	150
1201225B	BWAB 120/12-25	12	250	170	92	450	122	12	36	150
1500815B	BWAB 150/08-15	8	150	170	115	320	150	12	30	150
1500820B	BWAB 150/08-20	8	200	170	115	320	150	12	30	150
1500825B	BWAB 150/08-25	8	250	170	115	320	150	12	30	150
1501010B	BWAB 150/10-10	10	100	170	118	350	150	12	30	150
1501015B	BWAB 150/10-15	10	150	170	118	390	150	12	30	150
1501020B	BWAB 150/10-20	10	200	170	118	390	150	12	30	150
1501025B	BWAB 150/10-25	10	250	170	118	390	150	12	30	150
1501210B	BWAB 150/12-10	12	100	170	120	310	150	12	36	125
1501215B	BWAB 150/12-15	12	150	170	120	450	150	12	36	125
1501220B	BWAB 150/12-20	12	200	170	120	450	150	12	36	125
1501225B	BWAB 150/12-25	12	250	170	120	450	150	12	36	125
1700815B	BWAB 170/08-15	8	150	170	134	320	168	12	30	125
1700820B	BWAB 170/08-20	8	200	170	134	320	168	12	30	125
1700825B	BWAB 170/08-25	8	250	170	134	320	168	12	30	125
1701010B	BWAB 170/10-10	10	100	170	136	390	168	12	30	125
1701015B	BWAB 170/10-15	10	150	170	136	390	168	12	30	125
1701020B	BWAB 170/10-20	10	200	170	136	390	168	12	30	125
1701025B	BWAB 170/10-25	10	250	170	136	390	168	12	30	125
1701210B	BWAB 170/12-10	12	100	170	138	370	168	12	36	125
1701215B	BWAB 170/12-15	12	150	170	138	450	168	12	36	125
1701220B	BWAB 170/12-20	12	200	170	138	450	168	12	36	125
1701225B	BWAB 170/12-25	12	250	170	138	450	168	12	36	125
1900815B	BWAB 190/08-15	8	150	170	152	320	186	12	30	125
1900820B	BWAB 190/08-20	8	200	170	152	320	186	12	30	125
1900825B	BWAB 190/08-25	8	250	170	152	320	186	12	30	125
1901010B	BWAB 190/10-10	10	100	170	154	390	186	12	30	125
1901015B	BWAB 190/10-15	10	150	170	154	390	186	12	30	125
1901020B	BWAB 190/10-20	10	200	170	154	390	186	12	30	125
1901025B	BWAB 190/10-25	10	250	170	154	390	186	12	30	125
1901210B	BWAB 190/12-10	12	100	170	156	430	186	12	36	125
1901215B	BWAB 190/12-15	12	150	170	156	450	186	12	36	125
1901220B	BWAB 190/12-20	12	200	170	156	450	186	12	36	125
1901225B	BWAB 190/12-25	12	250	170	156	450	186	12	36	125
2200815B	BWAB 220/08-15	8	150	170	188	320	222	12	30	80
2200820B	BWAB 220/08-20	8	200	170	188	320	222	12	30	80
2200825B	BWAB 220/08-25	8	250	170	188	320	222	12	30	80
2201010B	BWAB 220/10-10	10	100	170	190	390	222	12	30	80
2201015B	BWAB 220/10-15	10	150	170	190	390	222	12	30	80
2201020B	BWAB 220/10-20	10	200	170	190	390	222	12	30	80
2201025B	BWAB 220/10-25	10	250	170	190	390	222	12	30	80
2201210B	BWAB 220/12-10	12	100	170	192	450	222	12	36	80
2201215B	BWAB 220/12-15	12	150	170	192	450	222	12	36	80
2201220B	BWAB 220/12-20	12	200	170	192	450	222	12	36	80
2201225B	BWAB 220/12-25	12	250	170	192	450	222	12	36	80
2400815B	BWAB 240/08-15	8	150	170	208	320	242	12	30	80
2400820B	BWAB 240/08-20	8	200	170	208	320	242	12	30	80
2400825B	BWAB 240/08-25	8	250	170	208	320	242	12	30	80
2401010B	BWAB 240/10-10	10	100	170	210	390	242	12	30	80
2401015B	BWAB 240/10-15	10	150	170	210	390	242	12	30	80
2401020B	BWAB 240/10-20	10	200	170	210	390	242	12	30	80
2401025B	BWAB 240/10-25	10	250	170	210	390	242	12	30	80
2401210B	BWAB 240/12-10	12	100	170	212	450	242	12	36	80
2401215B	BWAB 240/12-15	12	150	170	212	450	242	12	36	80
2401220B	BWAB 240/12-20	12	200	170	212	450	242	12	36	80
2401225B	BWAB 240/12-25	12	250	170	212	450	242	12	36	80
